Air Valves

  Metal Exhaust Air Valve EV

Suitable for offices, houses, etc,easy installation on the wall or in the ceiling.

• Suitable for offices, houses, etC,easy installation on the wall or in the ceiling
• Manufactured from sheet steel painted white
• Available also in Stainless steel version EV-S.
• The valve body is equipped with a cellular plastic gasket to form an air-tight seal.
• The air flow is adjusted by rotating the control disc.
• Supplied with mounting ring

Metal Supply Air SV

• Suitable for offices, houses, etC,easy installation on the wall or in the ceiling
• Manufactured from sheet steel painted white RAL9010 or RAL9016
• Available also in Stainless steel version SV-S.
• The valve body is equipped with a cellular plastic gasket.
• The air flow is adjusted by rotating the control disc.
• Supplied with mounting ring

Stainless Air Valve VS

All Stainless steel 304 construction, excellent feature of antirust.

• All Stainless steel 304 construction, excellent feature of antirust.
• Suitable for offices, houses, etc,easy installation on the wall or in the ceiling
• Distinguished good appearance.
• Applied for both return and supply air.
• The air flow is adjusted by rotating the control disc.
• Supplied with mounting ring

Metal Exhaust Air Valve NEV

• Suitable for offices, houses, etc,easy installation on the wall or in the ceiling
• Manufactured from sheet steel painted white
• The valve body is equipped with a cellular plastic gasket.
• The air flow is adjusted by rotating the control disc.
• Supplied with mounting ring

Metal Supply Air Valve NSV

• Suitable for offices, houses, etc,easy installation on the wall or in the ceiling
• Manufactured from sheet steel painted white
• The valve body is equipped with a cellular plastic gasket.
• The air flow is adjusted by rotating the control disc.
• Supplied with mounting ring

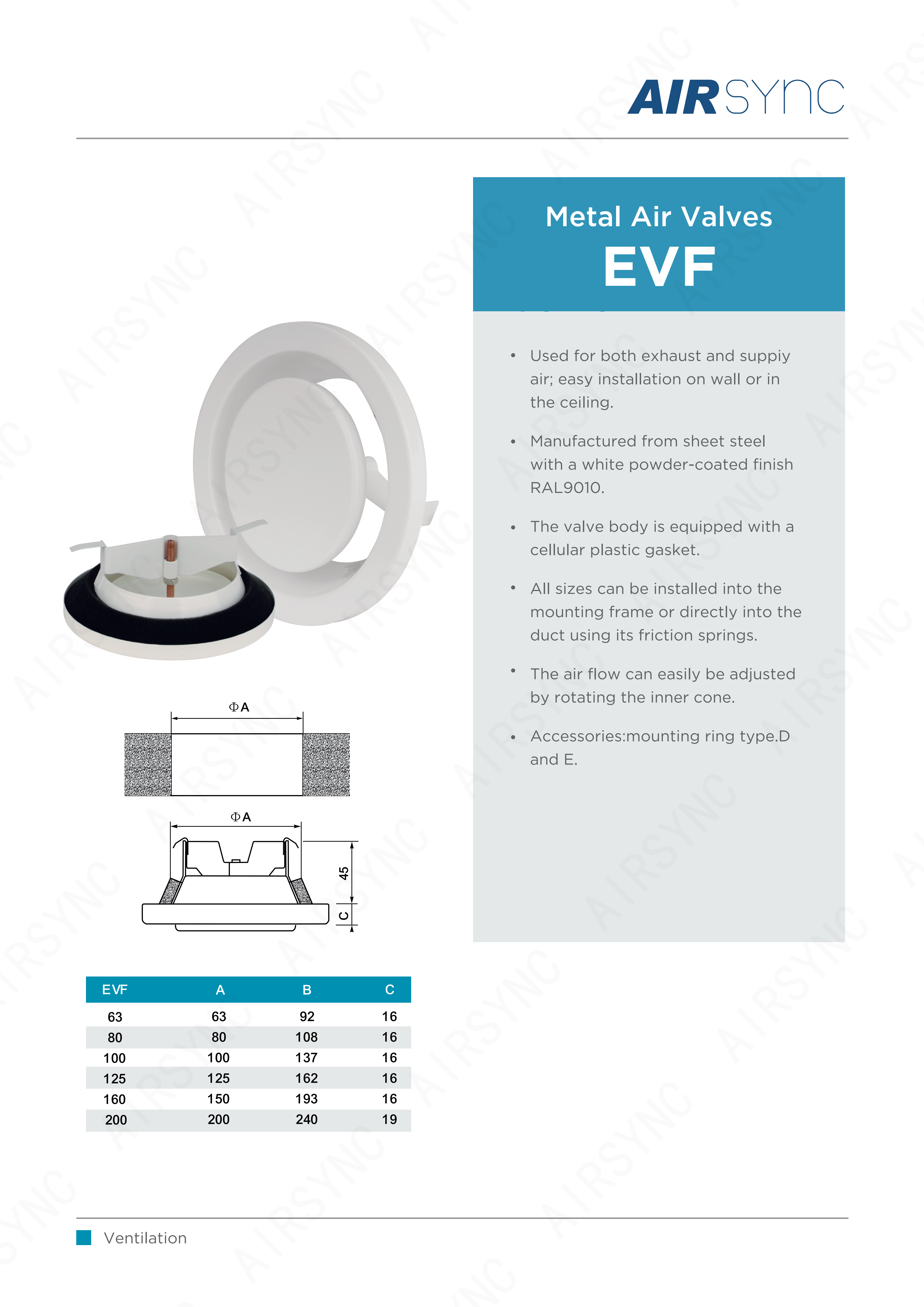

Metal Exhaust Air Valve EVF

• Used for ventilation system with a low sound level even at high pressure drops.
• Manufactured from sheet steel painted white RAL9010 or RAL9016
• The valve body is equipped with a cellular plastic gasket.
• The air flow can easily be adjusted by rotating the inner cone.
• Supplied with mounting ring

Metal Supply Air Valve SVF

• Used for ventilation system with a low sound level even at high pressure drops.
• Manufactured from sheet steel painted white RAL9010 or RAL9016
• The valve body is equipped with a cellular plastic gasket.
• The air flow can easily be adjusted by rotating the inner cone.
• Supplied with mounting ring

Metal Exhaust Air Valve KEV

Used for both exhaust and supply air,easy installation on the wall or in the ceiling.

• Used for both exhaust and supply air,easy installation on the wall or in the ceiling.
• Manufactured from sheet steel painted white RAL9010 or RAL9016
• The valve body is equipped with a cellular plastic gasket.
• All sizes can be installed into the mounting frame or directly into the duct using its friction springs.
• The air flow can easily be adjusted by rotating the inner cone.
• Accessories:mounting ring type.D and E.

Metal Supply Air Valve KSV

• Used for both exhaust and supply air,easy installation on the wall or in the ceiling.
• Manufactured from sheet steel painted white RAL9010 or RAL9016
• The valve body is equipped with a cellular plastic gasket.
• All sizes can be installed into the mounting frame or directly into the duct using its friction springs.
• The air flow can easily be adjusted by rotating the diffuser unit.
• Accessories:mounting ring.

Vault Supply Air Valve TIH

• A quiet supply air valve suitable for offices, houses, etc,easy installation on the wall.
• Manufactured from sheet steel painted white RAL9010 or RAL9016
• A removable front plate for easy cleaning,measuring and adjustment of air flow.

Plastic Air Valve VP

• Suitable for rooms with a high air humidity.(e.g. Kitchen,bathroom)
• Diameter 100,125,150 and 200mm.
• Manufactured from polypropylene heat resistant to 100℃.
• Variable air flow control.
• No leakage between valve body and mounting frame.
• High valve body improving air flow/less noise with spring fastening.
• Simple removal for cleaning.
• For mounting in places with small spaces a clamping ring in added.

Plastic Air Valve SVP

• Suitable for rooms with a high air humidity.(e.g. Kitchen,bathroom)
• Manufactured from polypropylene heat resistant to 100℃.
• High valve body improving air flow/less noise with spring fastening.
• The valve body is equipped with a cellular gasket to form an air-tight seal.
• Air supply valve in plastic with adjustable control of the airflow.
• The valve can be mounted in ceiling or wall and is available in four sizes for round ductΦ80-Φ160.
• The valve is equipped with a measuring tap for easy adjustment.Mounting frame is available as accessory.
• For mounting in places with small spaces a clamping ring in added.
