Flexible Ducts

SEMI RIGID ALUM DUCT

Suitable for offices, houses, etc,easy installation on the wall or in the ceiling

• Thicker material is used in manufacturing to offer greater strength and temperature rating.
• Supplied in a compressed length this form of flexible ducting has a unique expanding design that offer efficient venting,as it holds it's shape and full diameter,even when bends are applied.
• Ideal for straight and indirect venting installations for clothes dryers,rangehoods,bathrooms and other general venting applications.
• To gain maximum lenth,use both hands to work in sections from the centre-out to either end .Temperature rating-70℃~250℃
• Diameter/Length/Thickness:60mm-250mm/1M-10M/0.09mm-0.12mm

Aluminium Flexible DuctALU

Full range of flexible uninsulated multiply aluminum/polyester laminated ducting for HVAC market.

• Made of multi-layer aluminum/polyester laminate with embedded flexible wire spring for different needs of operating temperature.
• Ideal for use in general purpose exhaust applications and ventilation of central air-con system.
• Max air Velocity: 30 Meter/Sec(6000ft/min); Max air pressure: 250mm W.G.

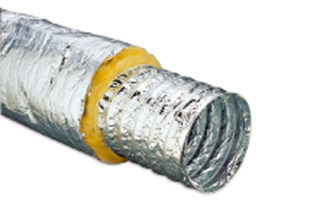

Insulated Aluminium Flexible Duct ISO

Full range of flexible thermal insulated ducting for preventing condensation when there’s temperature difference in airflow of ventilation system.

• Helpful for reducing heat & cool loss and preventing condensation
• Insulation:standard 16kg/m³ quality insulation glass wool and 32kg/m³ glass wool is also available.
• Packing:individual 120cm long carton packing or individual PE bag packing.

Acoustic Insulated Aluminium Flexible Duct SONO

• Full range of flexible acoustic thermal insulated ducting for preventing condensation and reducing noise when there’s temperature difference in airflow of ventilation system.
• Helpful for reducing heat & cool loss and preventing condensation.
• Insulation:standard 16kg/m³ quality insulation glass wool and 32kg/m³ glass wool is also available.
• Perfoated aluminum/polyester lamination for reducing noise.
• Packing:individual 120cm long carton packing or individual PE bag packing.

Combi Flexible Duct COMBI

Combined with an aluminum/polyester laminated inner core and a mechanical resistant PVC layer,CombiAir+ is good for some special industrial use such as for the exhaust of welding fumes.

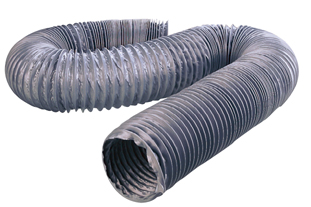

PVC Flexible Duct PVC
