Ventilation Mounting Accessories

  Spiral Clamp SCP A

Galvanized steel sprial clamps.

Galvanized steel sprial clamps

Spiral Clamp SCP B

Sprial clamps with rubber

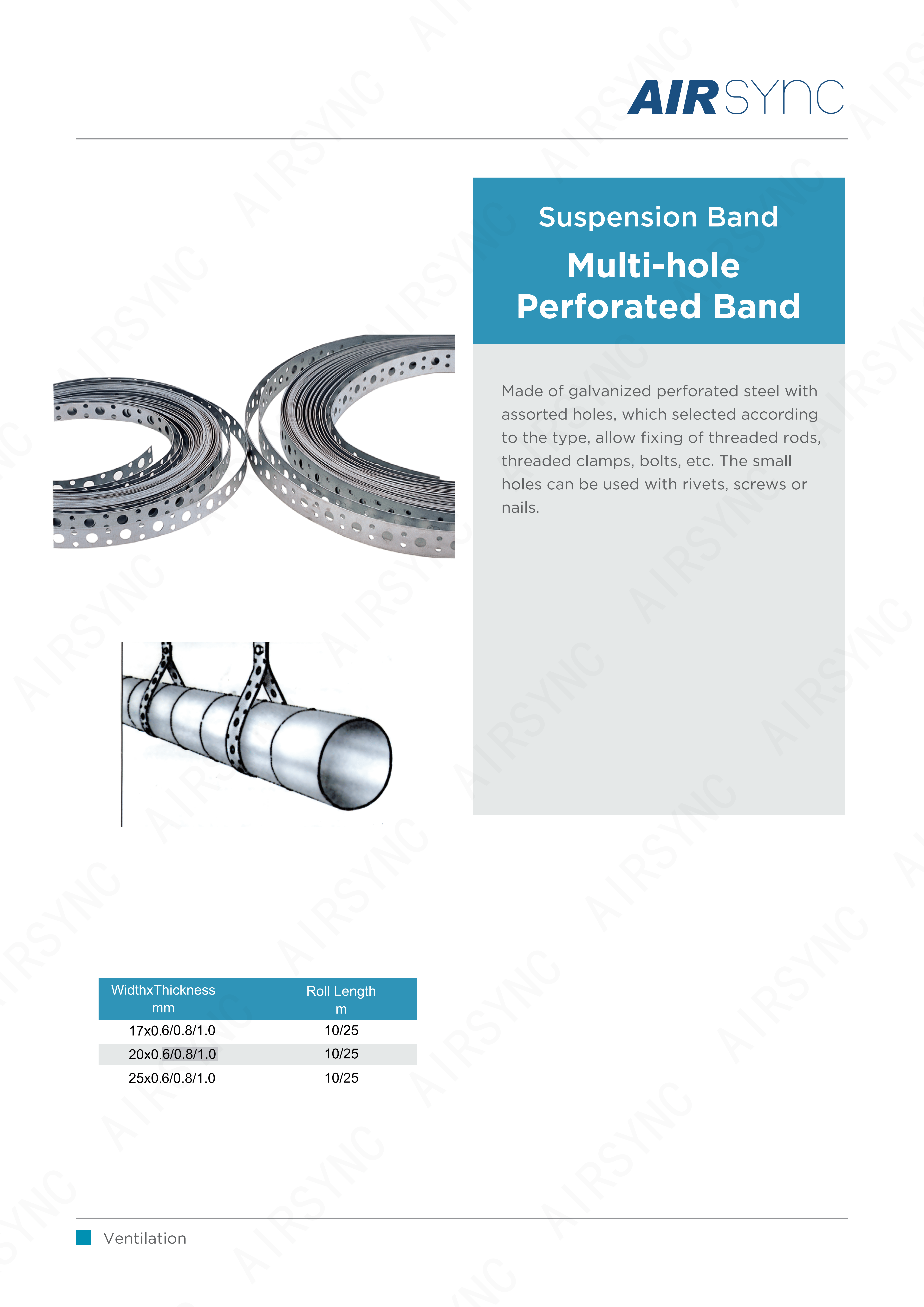

SUSPENSION BAND

Made of galvanized perforated steel with assorted holes,which selected according to the type,allow fixing of threaded rods,threaded claps,bolts etc.The holes can be used with rivets,screws or nails.

CORNER

• Galvanized steal.
• Corners are available in aluminum & stainless steel.
• Size:H20,H25,H30,H35,H40,TDC,TDF,Two-pcs type

CORNER CLAMP

HOLDER

THREADED RODS

• Made from mild steel,zinc plated.
• In 1,2 or 3meter lengths.
• Sizes:M3,M4,M5,M6,M8,M10,M12,M14,M16,M18,M20,M22,M24,M27,M30,M33,M36,M39

BEAM CLAMP

• Galvanized beam clamp for fixing threaded rods to metal profiles.
• Sizes:M6,M8,M10

PERFORMED SPEED CLAMPS

Made of 9mm stainless steel strip..

• Made of 9mm stainless steel strip,with suitable profiled edges preventing duct damage during fixing.
• Ideal for all types of flexible duct and suitable for different size with different lengtj strip.

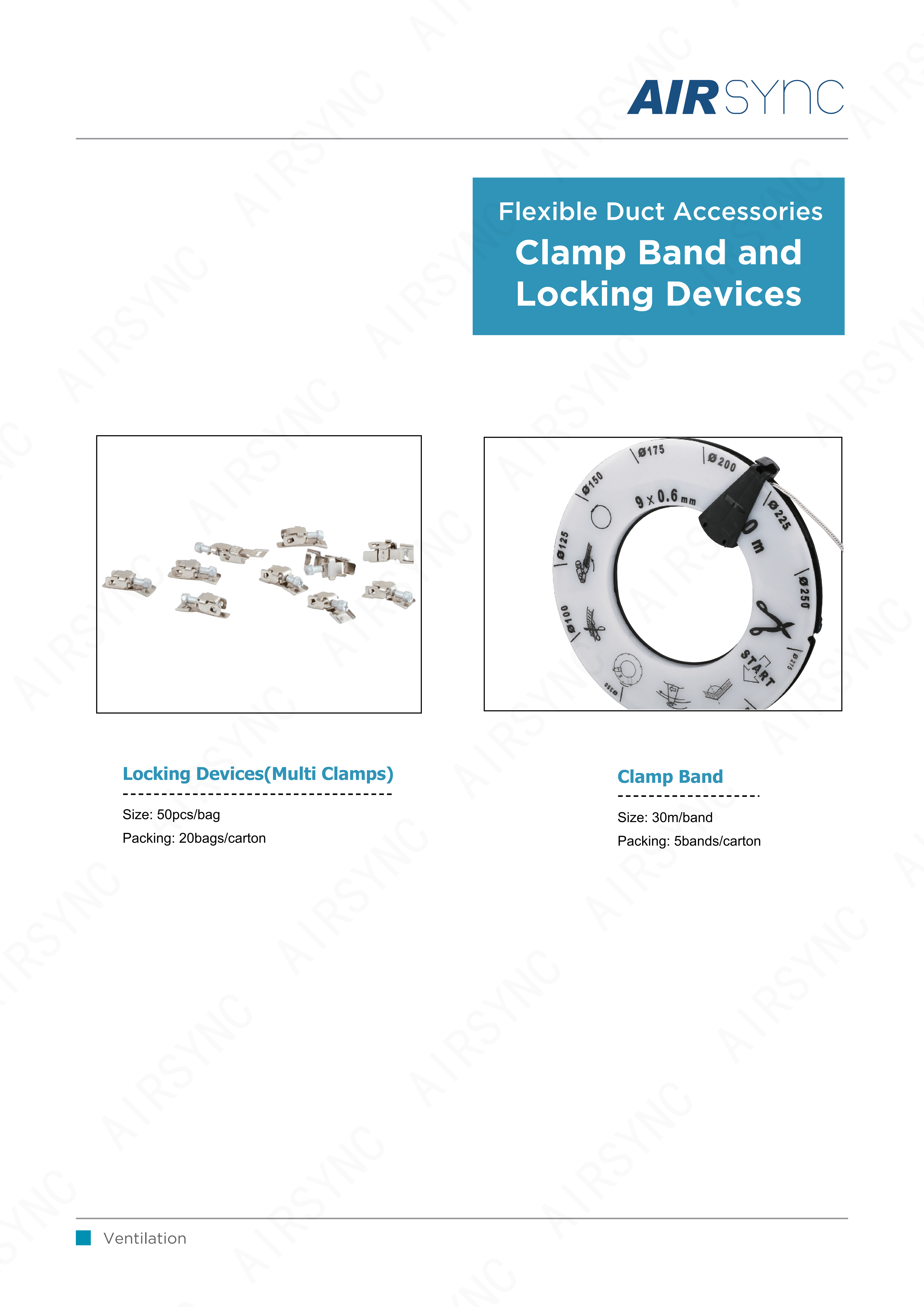

CLAMP BAND

• Comes with a handy plastic container having 30m strip inside and with multi clamp,you may cut it to any size fitting different size flexible ducts.
• Band:9mm width,0.6mm thickness width rounded edges and smooth undersides of banding prevent any risk of damage of the duct of pipe being clamped.

LOCKING DEVICES(MULTI CLAMPS)

• Size:50 pcs/bag
• Packing:20bags/carton

NYLON CLAMPS

• LENGTH * WIDTH

380mm*5mm/500mm*8mm/650mm*10mm/650mm*10mm/800mm*10mm/920mm*10mm/1188mm*10mm

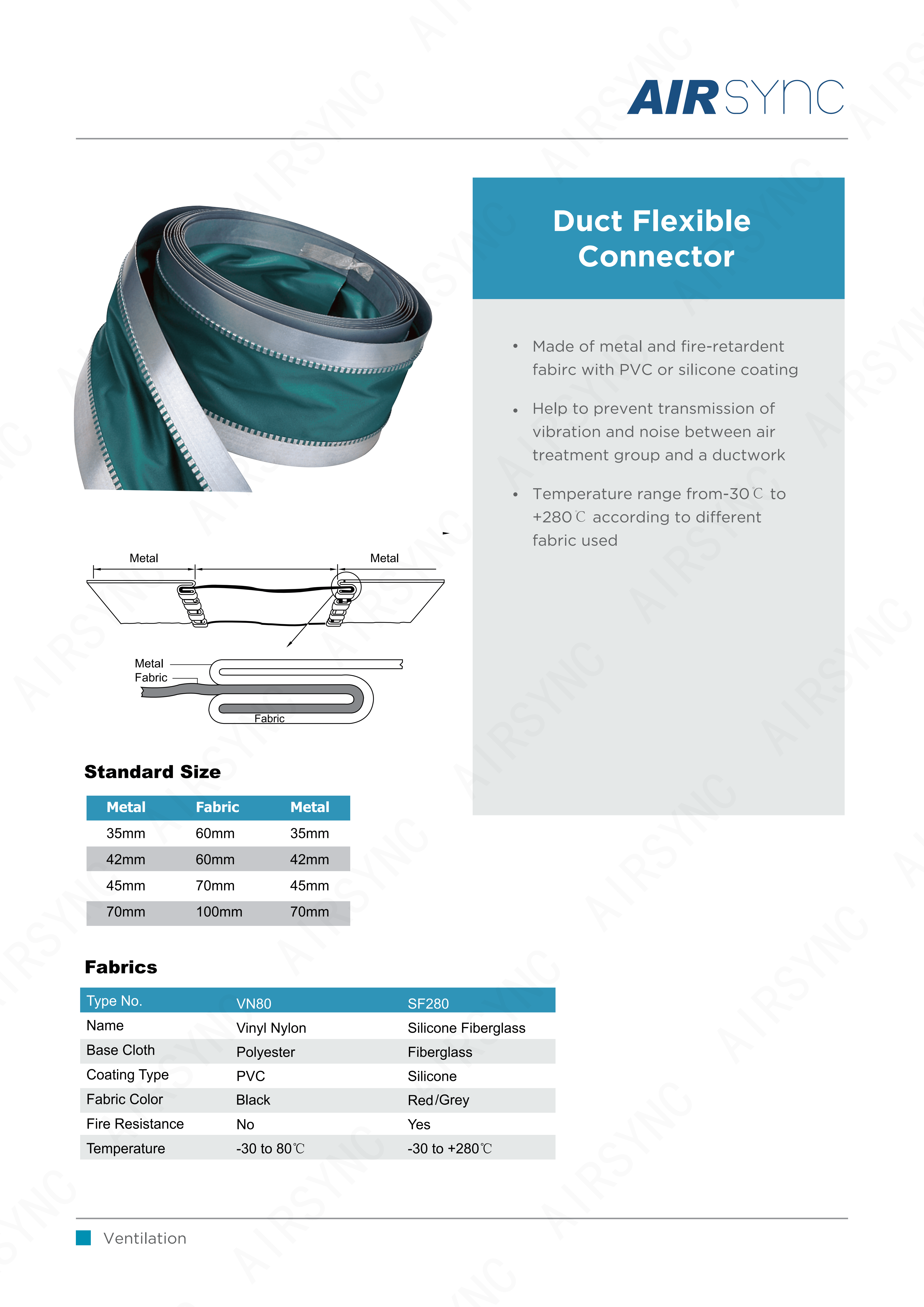

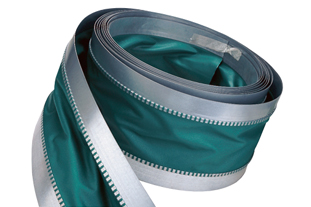

DUCT FLEXIBLE CONNECTOR

• Made of metal and fire-retardent fabirc with PVC or silicone coating.
• Help to prevent transmission of vibration and noise between air treatment group and a ductwork.
• Temperature range from -30℃~280℃ according to different fabric used.

Aluminium Foil Tape TAPE AF

• Manufactured from aluminum foil with hot melt or acrylic adhesive.
• Size:

   - Width:48mm,50mm,63mm,75mm,100mm

   -Length:30mm,30Yds,40m,40Yds,50,50Yds

   -Packing:2" tape-24rolls/ctn;3" tape-16rolls/ctn;4" tape-12rolls/ctn.

Aluminium Reinforced Tape TAPE AFSK

• Manufactured from reinforced aluminum foil with scrim & kraft backing.
• Size:

  -Width:48mm,50mm,63mm,75mm,100mm

  -Length:30mm,30Yds,40m,40Yds,50,50Yds

   - Thickness(Foil-scrim-kraft backing):120micron

   -Packing:2" tape-24rolls/ctn;3" tape-16rolls/ctn;4" tape-12rolls/ctn.

Damper Regulating Hardword DR-K

• Set includes:

  Handle

  Short clip bearing

  Long clip bearing

  Wing nut and washer

• Packing:100sets per carton

Damper Regulating Hardword DR-M

For dampers up to:250mm(10")Diameter

• Set includes:

  Handle

  Wing nut,washer & bolt

  Spring loaded end spindle

  Oval threaded spindle

• Packing:100 sets per carton

Damper Regulating Hardword DR14

For dampers up to:250mm(10")Diameter

• Set includes:

  Dial parts with handle

  Wing nut,washer & bolt

  1/4" Spring loaded end spindle

1/4" Square spindle

• Packing:100 sets per carton

Damper Regulating Hardword DR38

For dampers up to:500mm(20")Diameter

• Set includes:

  Dial parts with handle

  Wing nut,washer & bolt

  3/8" Spring loaded end spindle

3/8" Square spindle

• Packing:50 sets per carton

Damper Regulating Hardword DQS12

For dampers up to:700mm(30")Diameter

• Set includes:

   Quadrant

Handle

   Wing nut,washer & bolt

  1/2" Square spindle

  1/2" Round spindle

• Packing:50 sets per carton

Damper Regulating Hardword MQS12

For multi-blade dampers with round shaft of 12mm(1/2")diameter

For multi-blade dampers with round shaft of 12mm(1/2")diameter

• Set includes:

         Quadrant

         Handle

         Wing nut,washer & bolt

• Packing:50 sets per carton

Damper Regulating HardwordBD

For one-blade dampers

Made of galvanized steel

• Set includes:

   Quadrant

Handle

Screw & bolt

• Packing:100 sets per carton

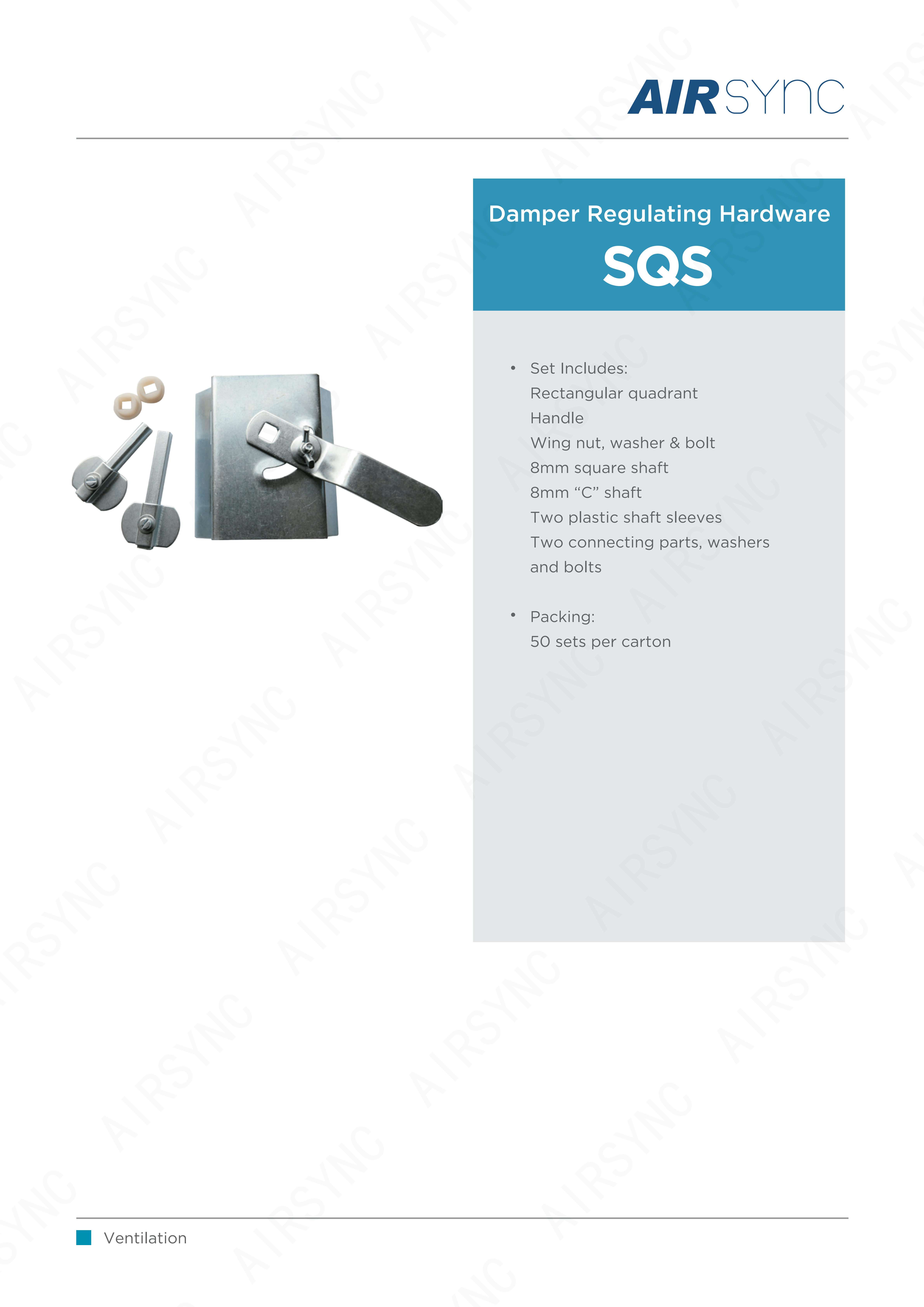

Damper Regulating Hardword SQS

• Set includes:

         Rectangular quadrant

          Handle

         Wing nut,washer & bolt

         8mm square shaft

         8mm”C” shaft

         Two plastic shaft sleeves

         Two connecting parts,washers and bolts

• Packing:50 sets per carton

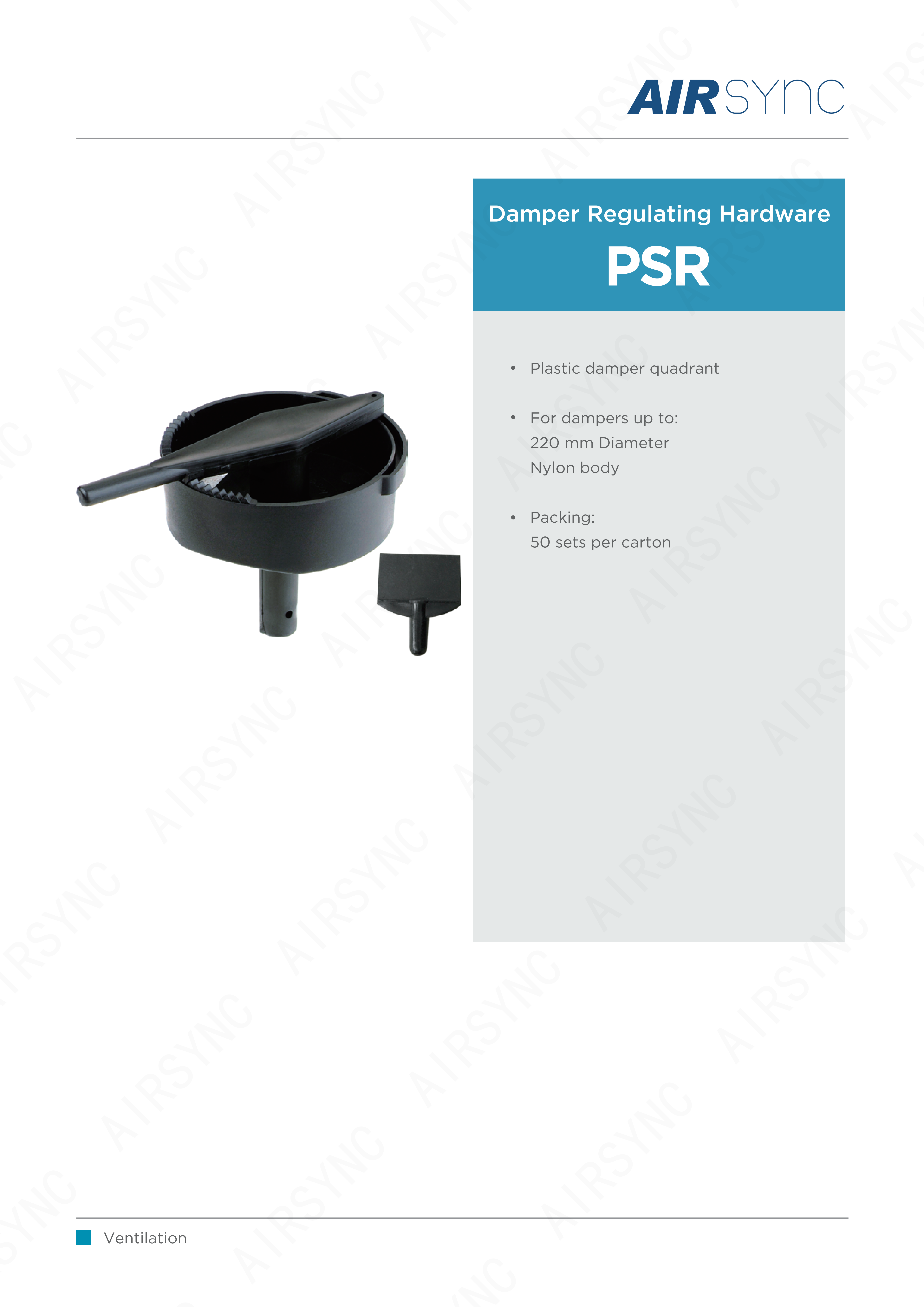

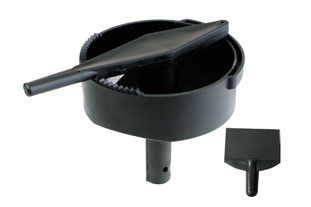

Damper Regulating Hardword PSR

Plastic damper quadrant

For damper up to:220mm Diameter

Nylon body

Packing:50 sets per carton
